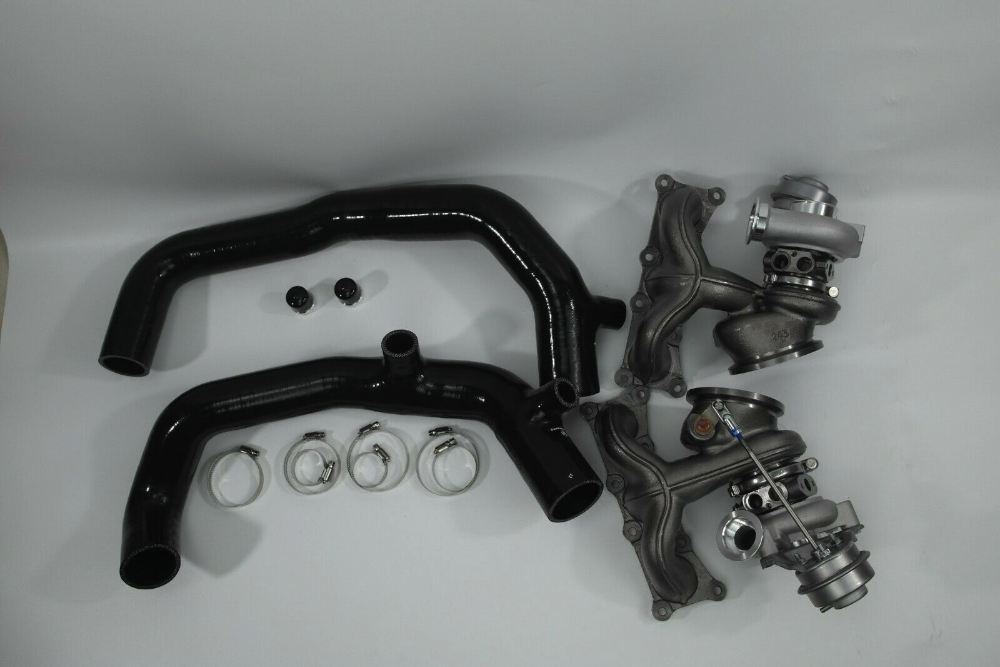

COMBO PACKAGE

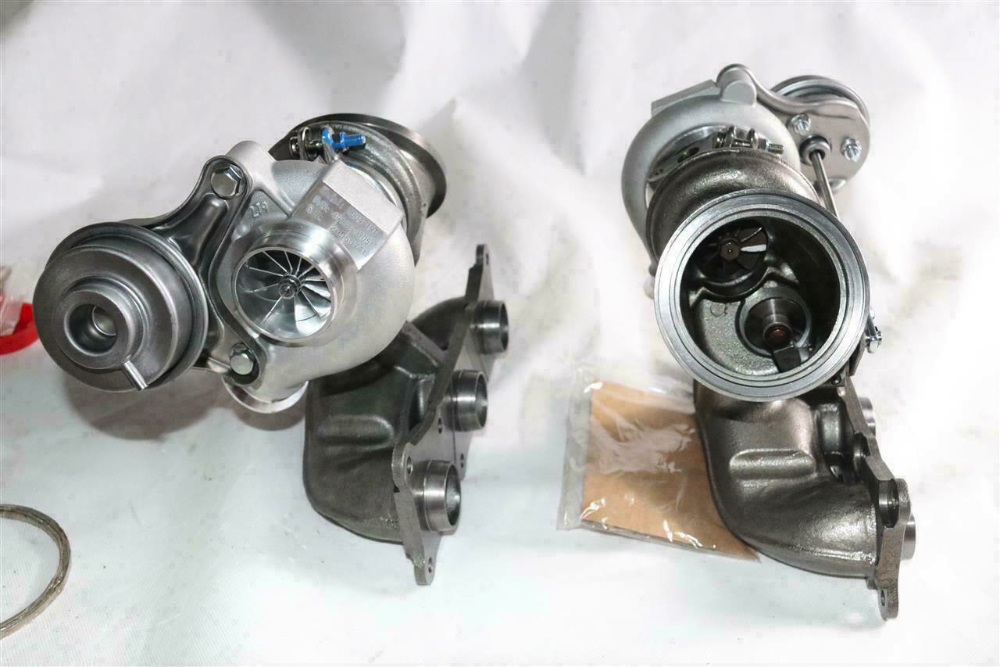

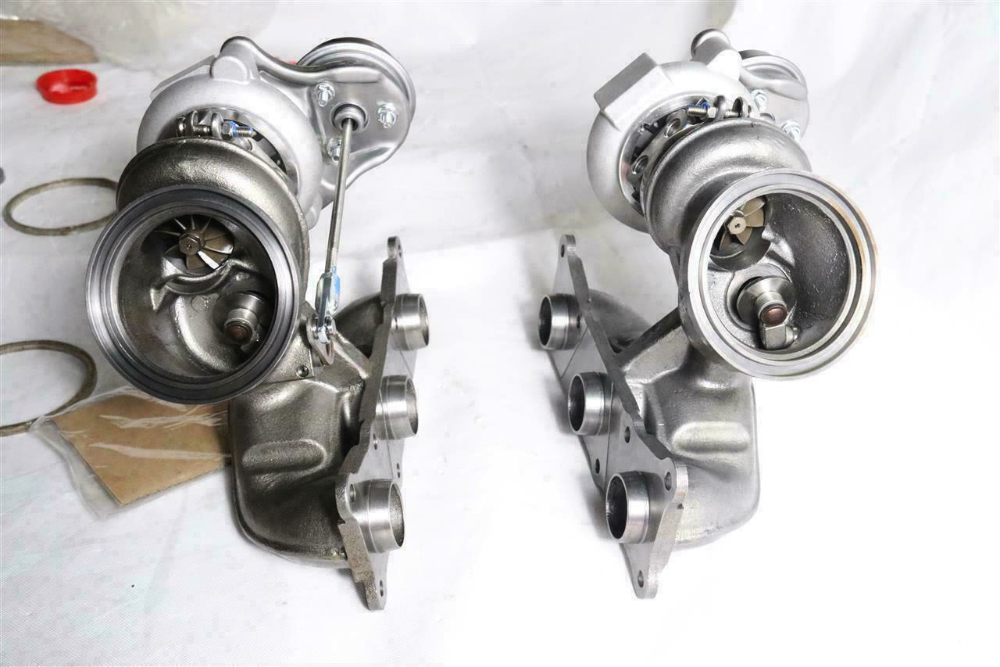

INLETS + (1) UPGRADED SET BMW N54 TD04-19T STAGE 3 Billet Wheel Upgrade Right Hand Drive Turbo Set
These are the latest version of the best stock location/hybrid twin turbo setup currently available for N54 XS-POWER as seen on BIMMERFORUMS
Full TD04 bearing housings machined from all new castings to accept OEM water/oil lines (not machined from standard cores)
TD04L 9 Blade turbine wheel (30% More Blade Surface Area Than The 11 & 12 Blade Wheel)
Garrett GTX 2 style Billet compressor wheel
Larger 2" compressor inlets INCLUDED
OEM waste-gate actuators with thicker rod, billet end link & upgraded billet waste-gate pivot arm assembly (no more rattles ever again!)
Upgraded dual oil port thrust assembly machined from copper bar
Upgraded thrust bearing (14mm vs 10mm)
Component balanced, dynamic balanced then VSR balanced
Proper machine tapped oil drain fitting thread unlike early version
Includes manifold gaskets, down-pipe gaskets and oil drain gaskets
2" inlets required INCLUDED
Silicone intake SET N54 TD04 turbos with 2" compressor inlets
Can also be plumbed to standard air-box or dual cone filters
Includes RE-circulation valve return fittings
Custom tune IS really recommended
Primary de-cat recommended.
Our products are developed
and intended for off-road racing.
They may not be legal for use on public highways where pollution
control laws apply.
Due to the nature of the use of these products, no warranty
is implied or given.
